Downloading the latest maps for free

Downloading map updates from Naviextras.com

Once you have connected your device to Naviextras Toolbox and logged in to your account, you can download map updates. Naviextras offers a latest map guarantee meaning that you can download the latest maps once for free. Within 45 days after the first use of your Pioneer Navigation System and a newer map update is available, you are entitled to install it for free. To do this, follow the steps below:

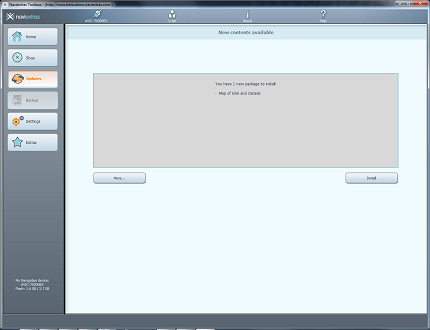

  1. Click Naviextras Toolbox installation on the left side of the Naviextras Toolbox window. You can see the new packages available to install.

    Naviextras Toolbox installation

  2. Click Install.

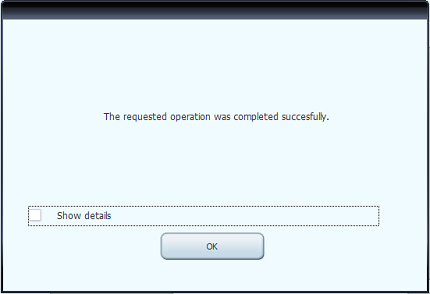

  3. After the installation, the system displays that the operation was completed successfully. Click OK. Now your device is up-to-date.

    Naviextras Toolbox installation

Transferring downloaded content to the navigation system

After downloading the updates to your USB memory stick, you can transfer them to Pioneer Navigation System. To do this, follow the steps below:

NOTE: During the transfer process, do NOT switch off the vehicles ignition, otherwise you may need to start the process again.

  1. Insert your USB memory stick containing the updates into its slot on the navigation device.

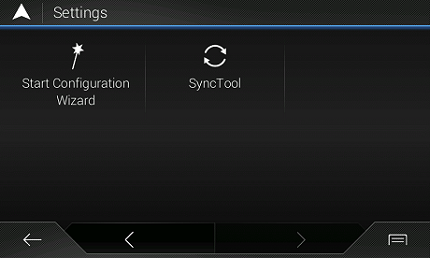

  2. From the Navigation menu, go to Settings and start Synctool.

    Naviextras Toolbox installation

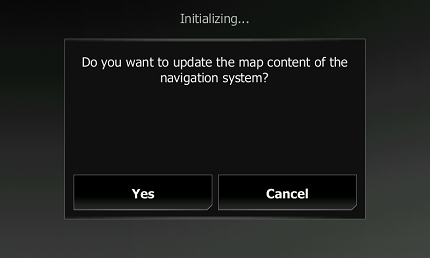

  3. The system asks you to confirm that you want to update the map contents of the navigation system. Tap Yes.

    Naviextras Toolbox installation

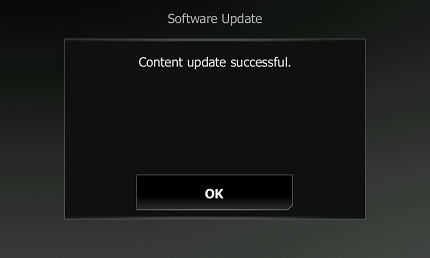

  4. The Pioneer Navigation System notifies you when the update process is complete.
    NOTE: The system may reboot several times during the update process.

    Naviextras Toolbox installation

  5. Exit Synctool and remove the USB memory stick. Pioneer Navigation System now uses the new content.
    NOTE: If the new content seems unavailable during navigation, repeat the installation process.

IMPORTANT INFORMATION:
Do not leave MAP mode on (e. g. AV/App mode, HOME screen) during the update process, otherwise the process is automatically suspended. In that case, you can restart Synctool at Step 2 for resume.
